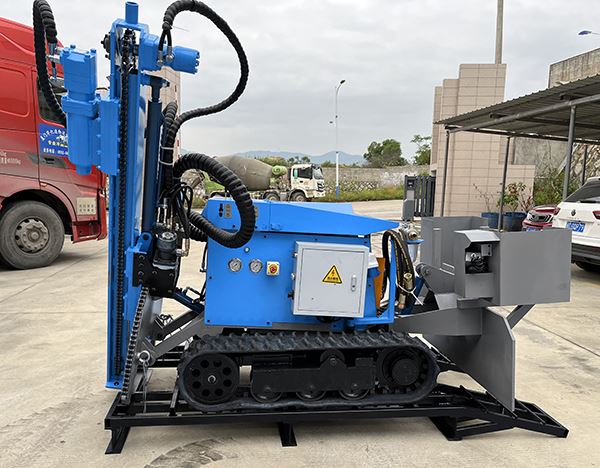

Crawler DTH Laum yog cov cuab yeej siv tau zoo thiab txhim khu kev qha siv rau pob zeb quarrying. Nws yog tsim tshwj xeeb los muab kev txhim kho kev ua tau zoo thiab kev tsim khoom hauv kev ua haujlwm nyuaj. Nrog nws cov thev naus laus zis thiab cov yam ntxwv zoo, Crawler DTH Drill yog qhov kev xaiv zoo tshaj plaws rau cov quarries tab tom nrhiav txhim kho lawv cov khoom tsim tawm.
Ib qho txiaj ntsig tseem ceeb ntawm kev siv Crawler DTH Drill yog nws txoj kev txav mus los. Nws tuaj yeem txav tau yooj yim nyob ib ncig ntawm lub chaw txua txiag zeb, ua rau tus neeg teb xov tooj mus txog qhov nyuaj - mus rau - thaj chaw nkag. Cov yam ntxwv no tseem ua rau nws yooj yim dua rau kev ua drilling nyob rau hauv ntau qhov chaw, ua kom cov haujlwm ua tiav hauv lub sijhawm luv dua.
Tsis tas li ntawd, Crawler DTH Laum yog nruab nrog ntau yam kev nyab xeeb uas ua rau nws tsim nyog rau kev ua haujlwm hauv qhov chaw nyuaj. Lub laum muaj lub hauv paus ruaj khov thiab kev ruaj ntseg zoo, kom ntseeg tau tias nws nyob hauv qhov chaw thaum ua haujlwm. Nws cov kev tswj hwm qib siab ua rau tus neeg teb xov tooj tswj xyuas cov haujlwm drilling kom zoo thiab ua tau zoo.
Lwm qhov txiaj ntsig tseem ceeb ntawm kev siv Crawler DTH Drill yog nws qhov tseeb thiab qhov tseeb. Lub laum tuaj yeem raug tsim los rau kev xyaum qhov sib txawv thiab qhov tob, ua kom nws ua tau raws li ntau yam kev xav tau ntawm quarrying. Cov qib no ua kom paub tseeb tias cov khoom zoo siab - ua tau zoo, uas yog qhov tseem ceeb rau cov neeg siv khoom txaus siab thiab tuav lub koob npe zoo hauv kev lag luam.
Zuag qhia tag nrho, Crawler DTH Laum yog cov cuab yeej ua tau zoo thiab txhim khu kev qha rau kev quarrying. Nws cov yam ntxwv siab heev thiab cov txiaj ntsig ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg ua haujlwm nrhiav kev txhim kho lawv cov kev ua tau zoo thaum ua kom muaj kev nyab xeeb thiab zoo. Nrog nws txoj kev txav mus los, qhov tseeb, thiab qhov tseeb, Crawler DTH Laum yog kev nqis peev uas tuaj yeem xa cov txiaj ntsig tseem ceeb rau kev ua haujlwm quarrying.
Product details
Daim ntawv thov: pob zeb blasting thiab drilling
Keeb kwm: Quanzhou, Suav teb
Daim ntawv pov thawj: ISO9001, CE, SGS thiab lwm yam.
Nqe: Negotiable
Lub sij hawm them nyiaj: TT, LC
Hnub xa khoom: Negotiable
Ntim: export txheem
Kev Ua Lag Luam: Sab Hnub Tuaj Asia / Middle East / Africa / South America / Europe / North America
Warranty: 1 xyoo
MOQ: 1 pc
Technical specifications
|
Parameter |
|
|
|
Rotary Torque |
950 |
Nm |
|
Kev sib hloov ceev |
52 |
rpm ua |
|
Lub cev muaj zog |
5.5 |
KW |
|
Ua hauj lwm zaus |
50 |
Hz |
|
Kev siv cua |
6 |
m3/ min |
|
Kev pub noj ib leeg |
1.4 |
m |
|
Drilling Diameter |
Φ90 |
mm |
|
Track Ceev |
4 |
KM/H |
|
Dimension |
3X1.6X2.5 |
m |
|
Qhov hnyav |
2500 |
KG |
🚜 Crawler DTH Laum Rig - Heavy-Duty Quarry & Pob Zeb Drilling Solution
CovCrawler DTH Laum Rigyog ntau yam, ua tau zoo drilling tshuab lub hom phiaj-ua rau quarries, qhib-qhov mining, nyuaj- pob zeb extraction, blast-qhov drilling, thauj tog rau nkoj-qhov drilling, thiab lwm yam hnyav-duty drilling dej num. Nws cov crawler-mounted tsim muab kev txav mus los zoo heev thiab kev hloov pauv hauv av - ua rau nws zoo tagnrho rau cov plag tsev ntxhib, tsis sib xws, toj roob hauv pes, lossis thaj chaw deb uas muaj log rigs tawm tsam.
pob zeb formations xws li granite, marble, limestone, sandstone, basalt thiab lwm yam., muab kev ruaj khov, sib sib zog nqus, thiab raug drilling kev ua tau zoo.
🌟 Cov yam ntxwv tseem ceeb & Kev siv zog
Crawler chassis nrog muaj zog off-txoj kev mus: Lub rig tuaj yeem hla cov av ntxhib, qhov chaw siab tshaj thiab cov chaw txua txiag zeb tsis sib xws - nws cov lem tau muab kev sib tw zoo thiab ruaj khov.
Down-the-Hole (DTH) rauj mechanism: Lub zog pob zeb tawg yog xa ncaj qha ntawm lub laum me ntsis, ua kom muaj kev cuam tshuam loj, muaj txiaj ntsig zoo drilling txawm nyob rau hauv cov pob zeb nyuaj.
Kev them nyiaj yug rau ntsug, kab rov tav thiab inclined drilling: Ua tsaug rau kev txhim kho boom / kev taw qhia teeb tsa thiab zawv zawg thav duab, lub kaum sab xis drilling tuaj yeem hloov kho - muaj txiaj ntsig zoo rau blast-qhov, thauj tog rau nkoj qhov lossis lub rooj zaum-ntsej muag drilling ntawm ntau yam kev taw qhia.
Lub qhov taub dav dav & qhov tob: Hom rigs txhawb qhov drilling qhov diameters ntawm ~ 90 mm mus txog ~ 130–165 mm (nyob ntawm tus qauv), thiab drilling qhov tob feem ntau 20–30 m lossis ntau dua - haum rau blasting qhov, thauj tog rau nkoj qhov, lossis tob boreholes.
Hydraulic / pneumatic hybrid hwj chim & npaum tsav system: Ntau tus crawler DTH rigs yog nruab nrog hydraulic pub / teb tshuab thiab muaj zog cua / hydraulic motors kom xa siab torque thiab du drilling, txawm nyob rau hauv hnyav load.
Dust-control & ib puag ncig ua raws (yeem): Qee cov qauv muab cov plua plav sib xyaw ua ke los yog cov plua plav ntub dej - ntxiv rau cov chaw txua txiag zeb uas xav tau ua raws li cov cai tswj kev noj qab haus huv ib puag ncig / chaw ua haujlwm.
Ib leeg-neeg ua haujlwm tswj & yooj yim maneuverability: Niaj hnub nimno crawler rigs feem ntau tso cai rau ib tus neeg teb xov tooj los tswj qhov drilling thiab qhov chaw, uas txo cov kev xav tau ntawm kev ua haujlwm thiab ua haujlwm yooj yim.
🏗 Daim Ntawv Thov Tseem Ceeb & Siv Cases
Blast-qhov drilling rau cov chaw txua txiag zeb extraction: Drill ntsug, inclined los yog angled moj tej tawg qhov los npaj rau kev tswj blasting los yog splitting ntawm loj pob zeb blocks.
Pre-splitting / tswj fracturing & thauj tog rau nkoj qhov drilling: Rau quarries xav tau meej thaiv kev sib cais los yog pob zeb stabilization / anchoring.
Drilling nyob rau hauv nyuaj struts los yog tej thaj chaw deb quarries: Lub crawler chassis ua rau kev ua haujlwm ntawm txoj kab nqes, qhov chaw tsis sib luag, ntub dej lossis av nkos - qhov twg cov log tsheb tsis tuaj yeem ncav cuag.
Qhov tob los yog loj-inch qhov drilling: Siv tau rau cov pob zeb hnyav hnyav uas yuav tsum muaj qhov loj me me lossis qhov tob tob (xws li . 90}-165 mm txoj kab uas hla, 20-30 m qhov tob +).
Ua ke quarrying, mining & civil hauj lwm: Kuj tseem tuaj yeem ua haujlwm hauv cov haujlwm xws li lub hauv paus drilling, kev tsim kho, thauj tog rau nkoj drilling lossis kev tsim vaj tsev pob zeb ua haujlwm thaum xav tau.
✅ Qhov zoo dua lwm yam Drilling
Mobility & terrain versatility- tsis zoo li cov log tsheb, cov tsheb thauj khoom siv tau yooj yim / tsis sib xws hauv cov chaw txua txiag zeb, cov chaw slopes thiab chaw taws teeb yooj yim.
Kev ua haujlwm siab drilling hauv cov pob zeb nyuaj- DTH rauj ua kom cov pob zeb tawg tau zoo txawm tias nyob hauv granite lossis basalt.
Flexibility nyob rau hauv drilling orientation- tsis txwv rau qhov ntsug; tuaj yeem ua angled lossis kab rov tav drilling raws li xav tau.
Qhov loj qhov & ntxaum drilling muaj peev xwm- txhawb nqa txoj kab uas hla loj dua thiab qhov tob dua li qhov kev xyaum me me.
Tsawg neeg ua haujlwm & nqi ua haujlwm- kev tswj ib leeg-tus neeg ua haujlwm, kev tuav yooj yim dua, cov cuab yeej pabcuam tsawg xav tau.
Muaj peev xwm ua kom huv si, ua haujlwm zoo dua- nrog cov kev xaiv tswj plua plav, thiab tswj tau ntau dua qhov drilling piv rau blasting lossis phau ntawv txoj kev.
